Recently I thought it would be useful to see what hook tools and pebble calls a charm is generating throughout its lifecycle as it handles the events juju sends to it.
I was about to start hacking around a new little jhack, but it turns out I’ve had this idea already, and
not even that long ago. That is, a jhack tool for the purpose exists already (although it does a little bit more than just recording the facts).
jhack replay
jhack replay is a little-known tool, and for good reason, as it’s
incredibly destructive and should probably not ever be used in anything remotely close to production. But for your local dev/staging/testing setup, it’s
fantastic .
How to use it

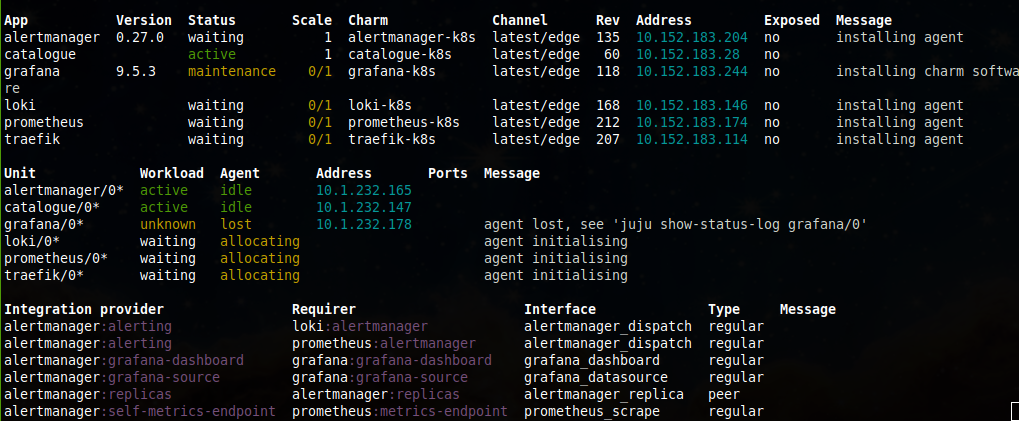

First, you need a model with some applications
Next, you need to run

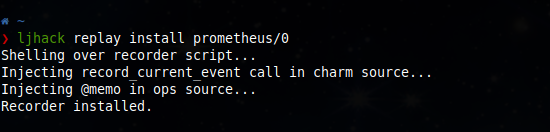

jhack replay install myapp/0
For example:
Note the ominous output, which gives a good overview of what’s going on. Jhack is:
- pushing to the unit a python module
- rewriting the charm source (
charm.py) using obscureasttrickery to insert a call to that module - rewriting several ops modules (
pebble.py, model.py) also withastto inject more calls to that module every time the charm interacts with pebble and hook tools
What does that module do? In a nutshell, it memoizes the inputs and outputs of the hook tool/pebble call. So if you want to see what the charm called, and what the response was, you can open up a file and read it.
From this point onwards, every event the charm receives will generate a new record, and every hook tool call and every pebble interaction (exec, push, pull…) will be attached to it.
How to view what’s been recorded
Type:

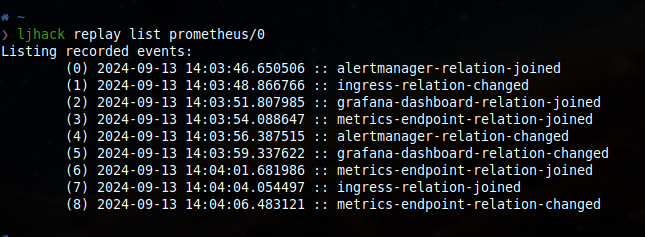

jhack replay list myapp/0
to view a full list of all events that have been recorded. For example:
Note the first column of the output: those IDs are assigned by the recorder itself, and we need to use them when interacting with it further.
Type:
jhack replay dump myapp/0 0
To view the captured event with ID 0.
This will output a big json data structure that contains:
- an
eventdata structure containing the full environment the charm was run with, including the hook name. - a
contextdata structure, containing a bunch ofmemos.- each
memocontains, among other things that are much more ‘meta’ than this post allows, a list ofcalls.- each
callrepresents a single hook tool call or pebble interaction that the charm has sought while handling that event.
- each
- each
Reading a call
An example of a call recorded on prometheus/0 during an ingress-relation-changed event is:
"_ModelBackend.is_leader": {
"calls": [
[
"[[], {}]",
"true"
],
[
"[[], {}]",
"true"
]
],
This means that the is-leader hook tool has been called twice while handling that event, both times without arguments, and both times it has returned "true".
"_ModelBackend.config_get": {
"calls": {
"[[], {}]": "{\"evaluation_interval\": \"1m\", \"log_level\": \"info\", \"maximum_retention_size\": \"80%
\", \"metrics_retention_time\": \"15d\", \"metrics_wal_compression\": false, \"web_external_url\": \"\"}"
},
This means that the config-get hook tool has been called only once, and in that occasion it returned that big json-encoded payload you see there.
Other hook tools and pebble method calls follow the same pattern, and it is usually quite intuitive how to map the name of the method being called on the operator framework to the name of the hook tool.
