How to deploy on Azure
Azure is a cloud computing platform developed by Microsoft. It has management, access and development of applications and services to individuals, companies, and governments through its global infrastructure. Access the Azure web console at portal.azure.com.
Summary
Set up Juju and Azure tooling
Warning: The described Azure interactive method (with web browser authentication service-principal-secret-via-browser) described here is only supported starting Juju 3.6-rc1+!
Install Juju and Azure CLI
Install Juju via snap:
sudo snap install juju --channel 3.6/edge
Follow the installation guides for:
- Azure CLI - the Azure CLI for Linux
To check they are all correctly installed, you can run the commands demonstrated below with sample outputs:
> juju version
3.6-rc1-genericlinux-amd64
> az --version
azure-cli 2.65.0
core 2.65.0
telemetry 1.1.0
Dependencies:
msal 1.31.0
azure-mgmt-resource 23.1.1
...
Your CLI is up-to-date.
Authenticate
Please follow the official Juju Azure documentation and check the extra explanation about possible options. Choose the authentication method which fits you best.
We are describing here the currently recommended interactive method with web browser authentication service-principal-secret-via-browser. This method does not require logging in with the Azure CLI locally, but it requires an Azure subscription.
The first mandatory step is to create an Azure subscription - you will need the Azure subscription ID for Juju.
Once you have it, add Azure credentials to Juju:
juju add-credential azure
This will start a script that will help you set up the credentials, where you will be asked to fill in a set of parameters:
credential-name: Fill this with a sensible name that will help you identify the credential set, say<CREDENTIAL_NAME>region: Select any default region that is more convenient for you to deploy your controller and applications. Note that credentials are not region-specific.auth type: selectinteractive, which is the recommended way to authenticate to Azure using Jujusubscription_id: Use the value<subscription_id>from the Azure subscription created in the previous step.application_name: Generate a random string to avoid collision with other users or applicationsrole-definition-name: Generate a random string to avoid collision with other users or applications, and store it as<AZURE_ROLE>
After prompting this information, you will be asked to authenticate the requests via web browser, as shown in the following example outputs:
To sign in, use a web browser to open the page https://microsoft.com/devicelogin and enter the code <YOUR_CODE> to authenticate.
In the browser, open the authentication page and enter the code <YOUR_CODE> provided in the output.
You will be asked to authenticate twice, for allowing the creation of two different resources in Azure.
If successful, you will see a confirmation that the credentials have been correctly added locally:
Credential <CREDENTIAL_NAME> added locally for cloud "azure".
Full sample output of `juju add-credential azure`
> juju add-credential azure
This operation can be applied to both a copy on this client and to the one on a controller.
No current controller was detected and there are no registered controllers on this client: either bootstrap one or register one.
Enter credential name: azure-test-credentials1
Regions
centralus
eastus
...
Select region [any region, credential is not region specific]: eastus
Auth Types
interactive
service-principal-secret
managed-identity
Select auth type [interactive]: interactive
Enter subscription-id: [USE-YOUR-REAL-AZURE-SUBSCRIPTION-ID]
Enter application-name (optional): azure-test-name1
Enter role-definition-name (optional): azure-test-role1
Note: your user account needs to have a role assignment to the
Azure Key Vault application (....).
You can do this from the Azure portal or using the az cli:
az ad sp create --id ...
Initiating interactive authentication.
To sign in, use a web browser to open the page https://microsoft.com/devicelogin and enter the code HIDDEN to authenticate.
To sign in, use a web browser to open the page https://microsoft.com/devicelogin and enter the code HIDDEN to authenticate.
Credential "azure-test-credentials1" added locally for cloud "azure".
Bootstrap Juju controller
Once successfully completed, bootstrap the new Juju controller on Azure:
> juju bootstrap azure azure
Creating Juju controller "azure" on azure/centralus
Looking for packaged Juju agent version 3.6-rc1 for amd64
No packaged binary found, preparing local Juju agent binary
Launching controller instance(s) on azure/centralus...
- juju-aeb5ea-0 (arch=amd64 mem=3.5G cores=1)
Installing Juju agent on bootstrap instance
Waiting for address
Attempting to connect to 192.168.16.4:22
Attempting to connect to 172.170.35.99:22
Connected to 172.170.35.99
Running machine configuration script...
Bootstrap agent now started
Contacting Juju controller at 192.168.16.4 to verify accessibility...
Bootstrap complete, controller "azure" is now available
Controller machines are in the "controller" model
Now you can run
juju add-model <model-name>
to create a new model to deploy workloads.

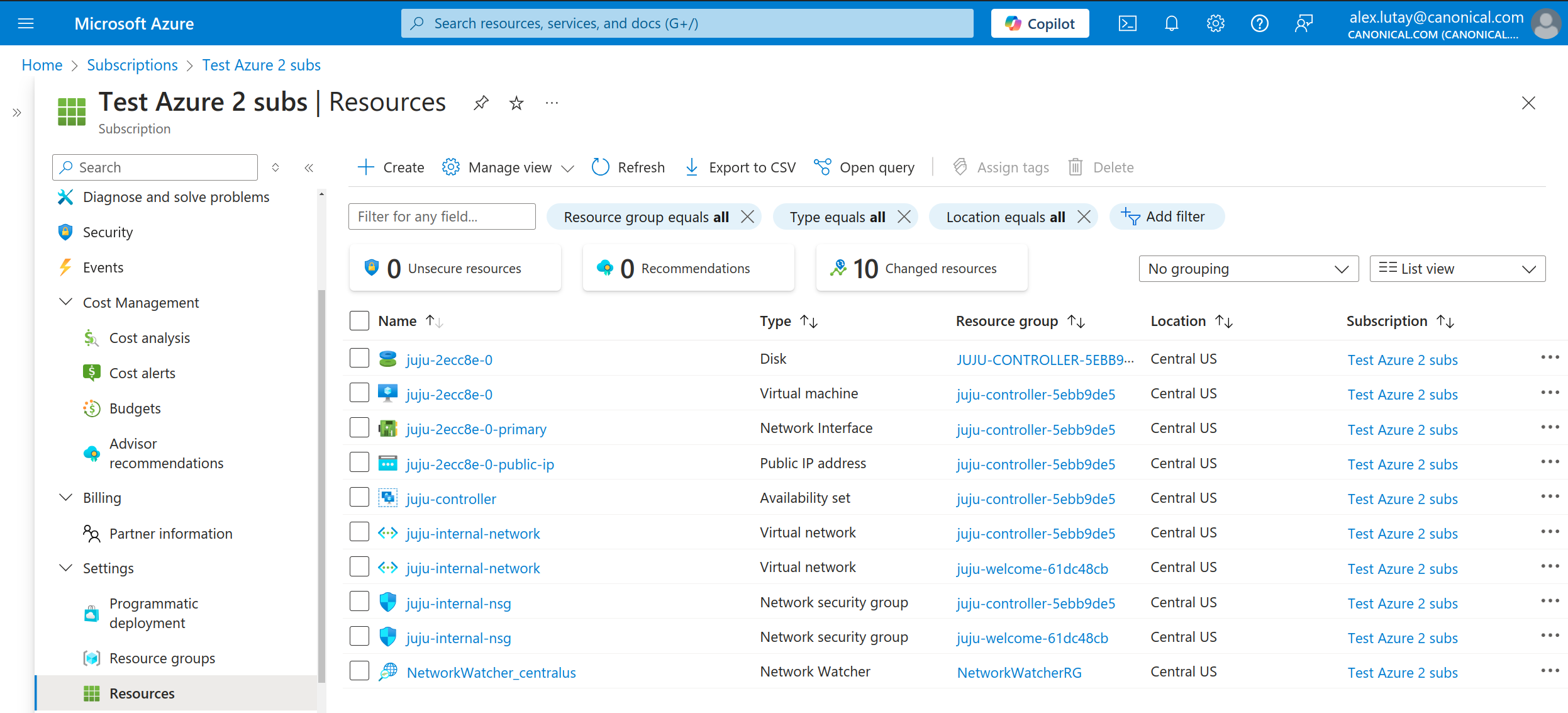

You can check the Azure instances availability:
Deploy charms
Create a new Juju model if you don’t have one already
juju add-model welcome
(Optional) Increase the debug level if you are troubleshooting charms:
juju model-config logging-config='<root>=INFO;unit=DEBUG'
The following command deploys MySQL and Data Integrator, a charm that can be used to requests a test database:
juju deploy mysql
juju deploy data-integrator --config database-name=test123
juju integrate mysql data-integrator
Check the status:
> juju status
Model Controller Cloud/Region Version SLA Timestamp
welcome azure-centralus azure/centralus 3.6-rc1.1 unsupported 16:05:59+02:00
App Version Status Scale Charm Channel Rev Exposed Message
data-integrator active 1 data-integrator latest/stable 41 no
mysql 8.0.36-0ubun... active 1 mysql 8.0/stable 240 no
Unit Workload Agent Machine Public address Ports Message
data-integrator/1* active idle 3 20.83.8.228
mysql/0* active idle 4 20.83.9.99 3306,33060/tcp Primary
Machine State Address Inst id Base AZ Message
3 started 20.83.8.228 juju-07d319-3 ubuntu@22.04
4 started 20.83.9.99 juju-07d319-4 ubuntu@22.04
Once deployed, request the credentials for your newly bootstrapped MySQL database:
juju run data-integrator/leader get-credentials
Example output:
...
mysql:
data: '{"database": "test123", "external-node-connectivity": "true", "requested-secrets":
"[\"username\", \"password\", \"tls\", \"tls-ca\", \"uris\"]"}'
database: test123
endpoints: 192.168.0.5:3306
password: 1yGJ2KqtN4Qlf6KgeJDLOVES
username: relation-14
version: 8.0.36-0ubuntu0.22.04.1
At this point, you can access your DB inside Azure VM using the internal IP address. All further Juju applications will use the database through the internal network:
mysql -h 192.168.0.5 -u relation-14 -P1yGJ2KqtN4Qlf6KgeJDLOVES test123
From here you can begin to use your newly deployed MySQL. Learn more about operations like scaling, enabling TLS, managing users and passwords, and more in the Charmed MySQL tutorial.
Expose database (optional)
If it is necessary to access the database from outside of Azure, open the Azure firewall using the simple juju expose functionality:
juju expose mysql
Be wary that opening ports to the public is risky.
Once exposed, you can connect your database using the same credentials as above. This time use the Azure VM public IP assigned to the MySQL instance. You can see this with juju status:
> juju status mysql
Model Controller Cloud/Region Version SLA Timestamp
welcome azure-centralus azure/centralus 3.6-rc1.1 unsupported 16:05:59+02:00
App Version Status Scale Charm Channel Rev Exposed Message
data-integrator active 1 data-integrator latest/stable 41 no
mysql 8.0.36-0ubun... active 1 mysql 8.0/stable 240 yes
Unit Workload Agent Machine Public address Ports Message
data-integrator/1* active idle 3 20.83.8.228
mysql/0* active idle 4 20.83.9.99 3306,33060/tcp Primary
Machine State Address Inst id Base AZ Message
3 started 20.83.8.228 juju-07d319-3 ubuntu@22.04
4 started 20.83.9.99 juju-07d319-4 ubuntu@22.04
Note the IP and port (20.83.9.99:3306) and connect via mysql:
mysql -h 20.83.9.99 -u relation-14 -P1yGJ2KqtN4Qlf6KgeJDLOVES test123
To close public access, run:
juju unexpose mysql
Clean up
Always clean Azure resources that are no longer necessary - they could be costly!
See all controllers in your machine with the following command:
> juju controllers
...
Controller Model User Access Cloud/Region Models Nodes HA Version
azure* welcome admin superuser azure/centralus 2 1 none 3.6-rc1.1
To destroy the azure Juju controller and remove the Azure instance, run the command below. All your data will be permanently removed.
juju destroy-controller azure --destroy-all-models --destroy-storage --force
Next, check and manually delete all unnecessary Azure VM instances and resources. To show the list of all your Azure VMs, run the following command (make sure no running resources are left):
az vm list
az resource list
List your Juju credentials:
> juju credentials
...
Client Credentials:
Cloud Credentials
azure azure-test-name1
...
Remove Azure CLI credentials from Juju:
juju remove-credential azure azure-test-name1
After deleting the credentials, the interactive process may still leave the role resource and its assignment hanging around.
We recommend you to check if these are still present with:
az role definition list --name azure-test-role1
Use it without specifying the
--nameargument to get the full list.
You can also check whether you still have a role assignment bound to azure-test-role1 registered using:
az role assignment list --role azure-test-role1
If this is the case, you can remove the role assignment first and then the role itself with the following commands:
az role assignment delete --role azure-test-role1
az role definition delete --name azure-test-role1
Finally, log out of the Azure CLI user credentials to prevent any credential leakage:
az logout
